6. QuasiRAW Workflow

../_images/preproc-quasiraw.png

6.1. Introduction

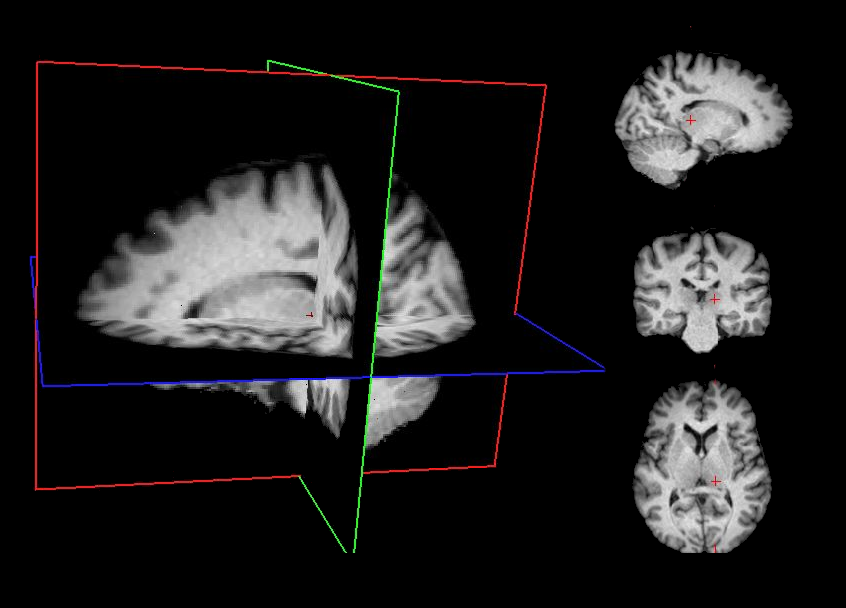

Minimally preprocessed data are generated using a standardized sequence of lightweight processing steps applied to the raw T1-weighted (T1w) MRI images. This workflow combines skull stripping, bias field correction, and spatial normalization using widely adopted neuroimaging tools. This minimal preprocessing pipeline ensures that the data are standardized and ready for subsequent processing stages while maintaining maximal fidelity to the original raw images.

6.2. Requirements

CPU

RAM

1

5 GB

6.3. Description

Processing Steps

  • Skull stripping Brain extraction is performed using FreeSurfer’s deep learning–based mri_synthstrip method [1], which provides a robust and accurate removal of non-brain tissues.

  • Bias field correction Intensity non-uniformities are corrected using the ANTs N4 algorithm [2], improving image homogeneity.

  • Affine registration to MNI space Spatial alignment is carried out using FSL FLIRT [3] with a 9‑degree‑of‑freedom (DOF) affine transformation (translations, rotations, and scaling; no shearing). This step registers the T1w image to the MNI template while preserving overall anatomy.

Quality Control

  • Correlation score For each image, we compute its correlation with the MNI template. Images are then sorted in ascending order of this score, allowing potential outliers to be easily identified.

  • Manual inspection Following the correlation-based ranking, generated T1w images at the lower end of the distribution are manually reviewed in-house. This step is performed using a PCA‑based reduction technique to detect the most obvious outliers, which are then removed.

  • Thresholding The correlation score is thresholded at 0.5, meaning that if an image is not roughly registered to the template, the preprocessing is considered invalid. Images with a correlation lower than 0.5 are flagged as low‑quality.

6.4. Outputs

The quasiraw directory contains subject-level results, logs, and quality-control outputs. The structure is organized following the brainprep ontology.

quasiraw/
├── dataset_description.json
├── figures
│   ├── histogram_mean_correlation.png
│   └── pca.png
├── log
│   └── report_<timestamp>.rst
├── quality_check
│   ├── mean_correlations.tsv
│   └── pca.tsv
└── subjects
   └── sub-01
       └── ses-01
           ├── log
           │   └── report_<timestamp>.rst
           ├── sub-01_ses-01_run-01_mod-T1w_affine.txt
           ├── sub-01_ses-01_run-01_mod-T1w_brainmask.nii.gz
           └── sub-01_ses-01_run-01_T1w.nii.gz

Description of contents:

  • dataset_description.json Metadata describing the process, including versioning and processing information.

  • figures/histogram_mean_correlation.png Image correlation-to-template distribution and applied threshold.

  • figures/pca.png Display of the first two PCA components of the generated images.

  • log/report_<timestamp>.rst Contains group-level workflow steps and parameters.

  • quality_check/mask_overlap.tsv Table containing the correlation score for each subject/session/run. The table includes a binary qc column indicating the quality control result.

  • quality_check/pca.tsv Table containing information on the first two PCA components.

  • subjects/sub-<id>/ses-<id>/log/report_<timestamp>.rst Contains subject-level workflow steps and parameters.

  • subjects/sub-<id>/ses-<id>/sub-01_ses-01_run-01_mod-T1w_affine.txt Affine transformation parameters (9 DOF) used to align the T1w image to the MNI template.

  • subjects/sub-<id>/ses-<id>/sub-01_ses-01_run-01_mod-T1w_brainmask.nii.gz Brain mask generated during skull stripping (e.g., via SynthStrip).

  • subjects/sub-<id>/ses-<id>/sub-01_ses-01_run-01_T1w.nii.gz The minimally preprocessed T1w image, including skull stripping, bias correction, and affine alignment.

6.6. References
